CCL Olympic Thermal Conductive Custom Parts 7420, Assorted Sizes - Image 1

CCL Olympic Thermal Conductive Custom Parts 7420, Assorted Sizes

Sheet-Dimensions: Customizable

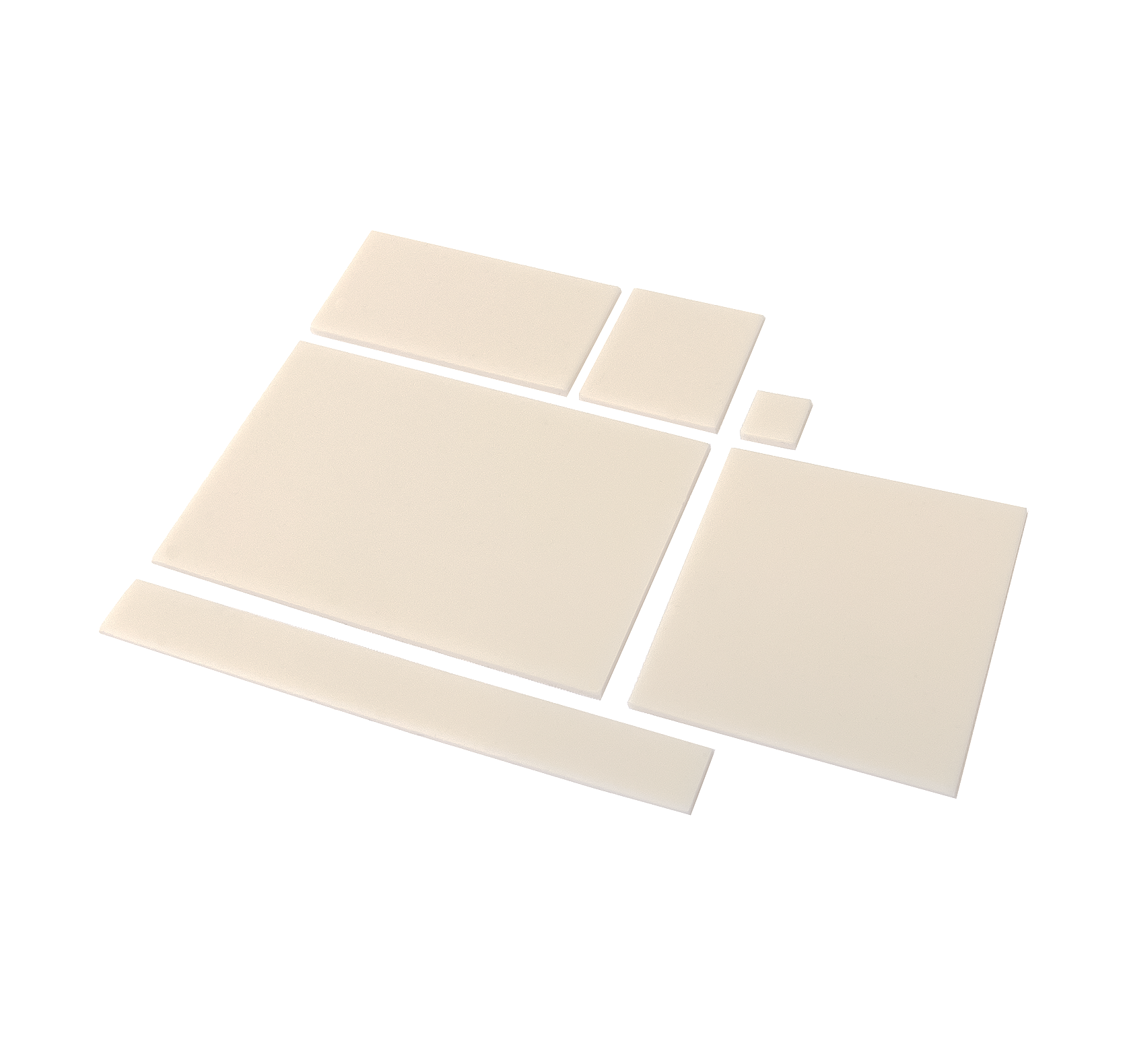

CCL Olympic’s thermal conductive parts are manufactured to the exact dimensions needed to allow precise positioning between any heat-source and heat-sink, ensuring excellent performance and maximized efficiency.

The 7400 is a very soft, acrylic, Thermal Interface Material with a thermal conductivity of 2.0 W/m·K. This silicone-free material is designed to be easily deformable using a low compression force, making it particularly suitable as a gap-filler material for batteries, PCB’s and many other electrical components.

To provide you with the best possible pricing, please contact us directly if you are deviating from the standard minimum/maximum sizes.

Length (mm)
min 10; max 650
Width (mm)
min 10; max 450
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
Total Order Price
€
0.00

NUMBER OF PARTS

PRICE PER PART

0.00
€
0.00
0.00
€
0.00
0.00
€
0.00
0.00
€
0.00
€
0.00
Available colors:
Additional information
Product Category

Thermal Conductive
Application

Thermal Management
Product Series

7400
Adhesive Type

TC Gap-pad
Format

Custom Parts
Thickness (mm)

2
Color

Thermal White
TC Value (W/m·K)

2
Sheet Dimensions

700mm x 500mm
